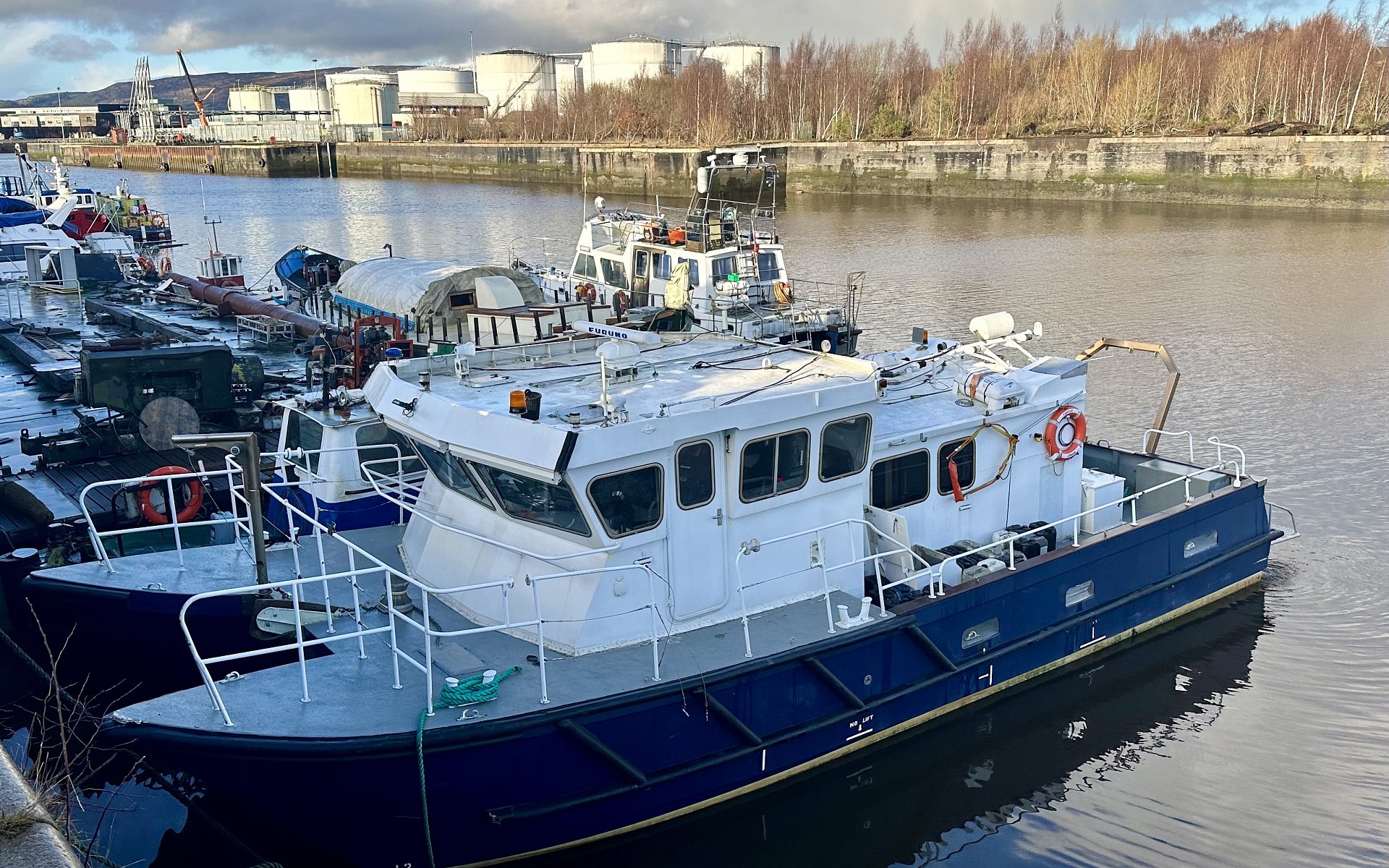

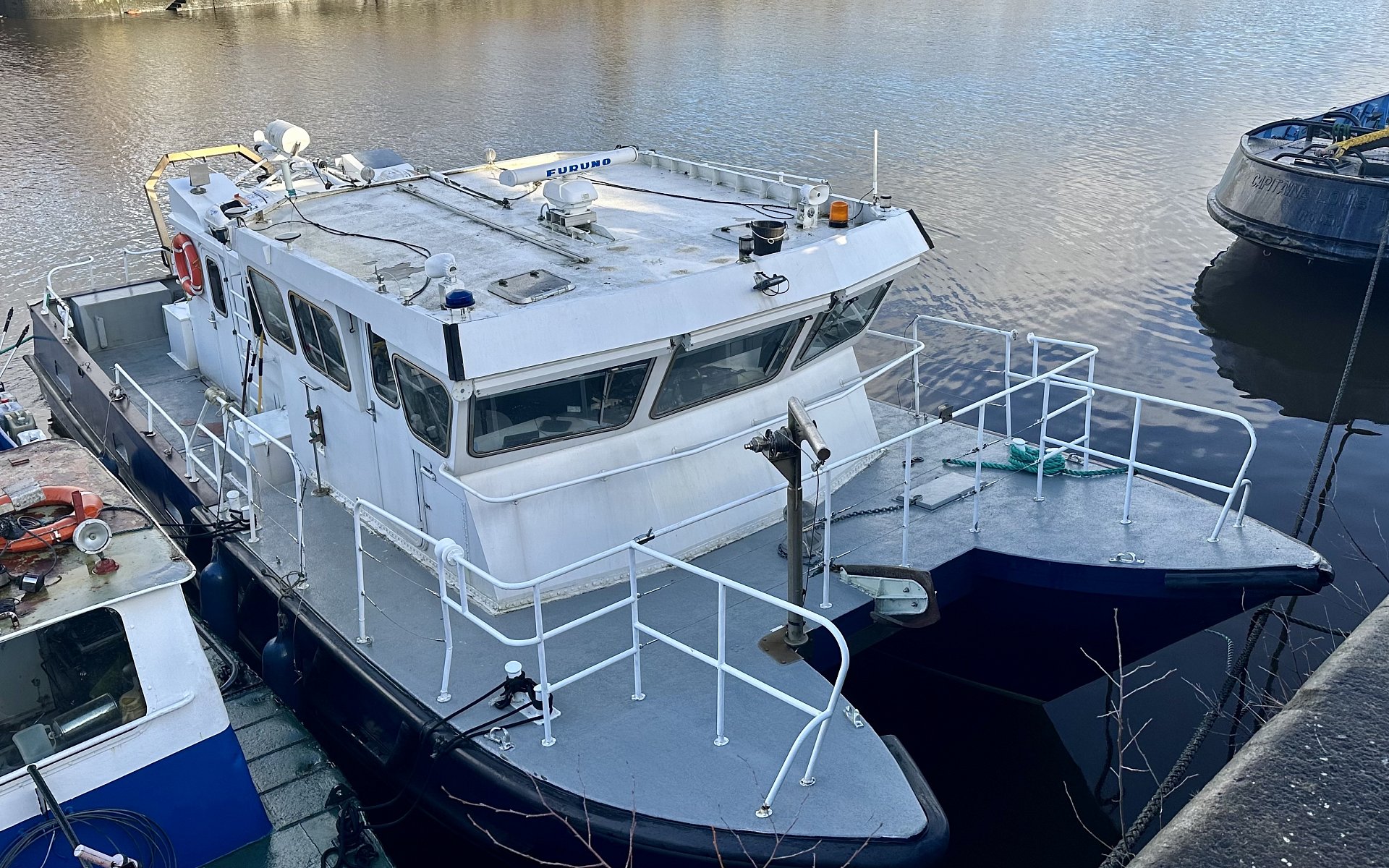

1995 Nelson Hydrographic Survey Catamaran

Cat 2 Hydrographic Survey Catamaran or Short/Long Term Charter Negotiable.
Powered by 2011 Cummins QSC 8.3l 6 cylinder turbo charged diesels
13.11m x 5.49m 18TCat 2 - 60 mile commercial certificate in date. Fuel tank and system clean / service carried out Autumn 2024 with one sail from Belfast to Glasgow since.
Very comfortable boat. Nice big galley, suspension seats etc. fully equipped kitchen.
Vessel is available for work straight away.
For charter or for sale. With or without the hydrographic survey gear.
Survey gear entails: Reson 7125 hull mounted and Coda F185.
For sale without Hydrographic survey kit - £180k With reson Multibeam etc - £199,950
Charter - £2250 + fuel per day without survey operations including captain
£3400 with survey gear including captain and chief surveyor + fuel.
Contact Smart Boat Sales today on +447985154373 where we will be happy to answer any questions & to schedule your viewing appointment.
Survey Report
Nelson designed craft are synonymous with the commercial world as pilot boats, police and many other offshore applications. This 13m catamaran designed by TT Boat Designs (Nelson) extends their broad knowledge of offshore boat design into a versatile but functional catamaran work platform purpose designed for survey work in shallow waters.
Her less than a metre draft and 'low noise' hull form together with her spacious interior volume,provides many advantages over an equivalent mono-hull of similar size. The water jet installation supplies pinpoint control in tight areas such as a narrow river or marina, enabling the helmsman to place the vessel and maintain position. Maximised visibility is afforded from the wheelhouse both for the helmsman and work station crew members. A major refitted was completed May 2023 by the current owners over a 2 year period , this Nelson 13m is ready for work. Vessel is coded.

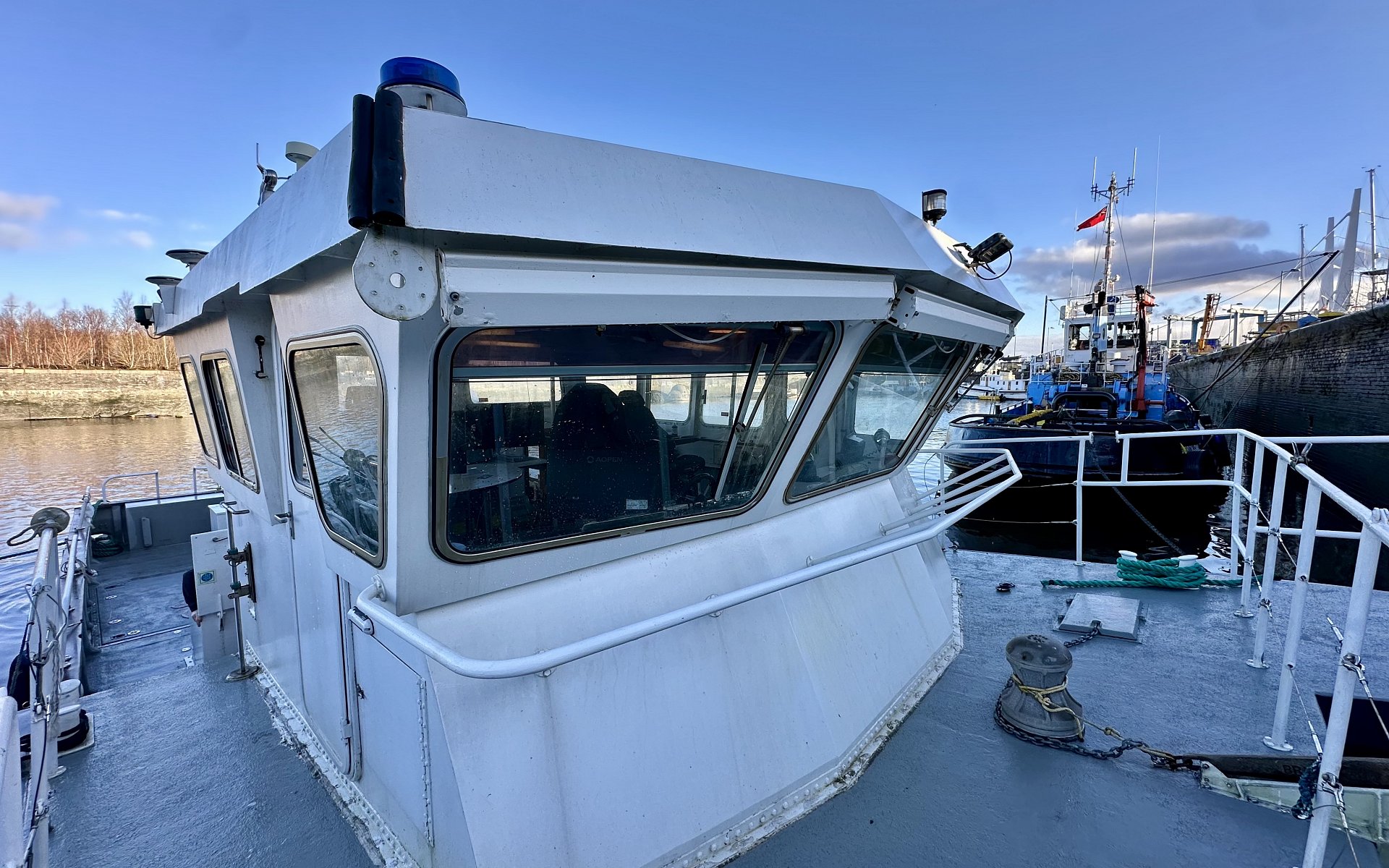

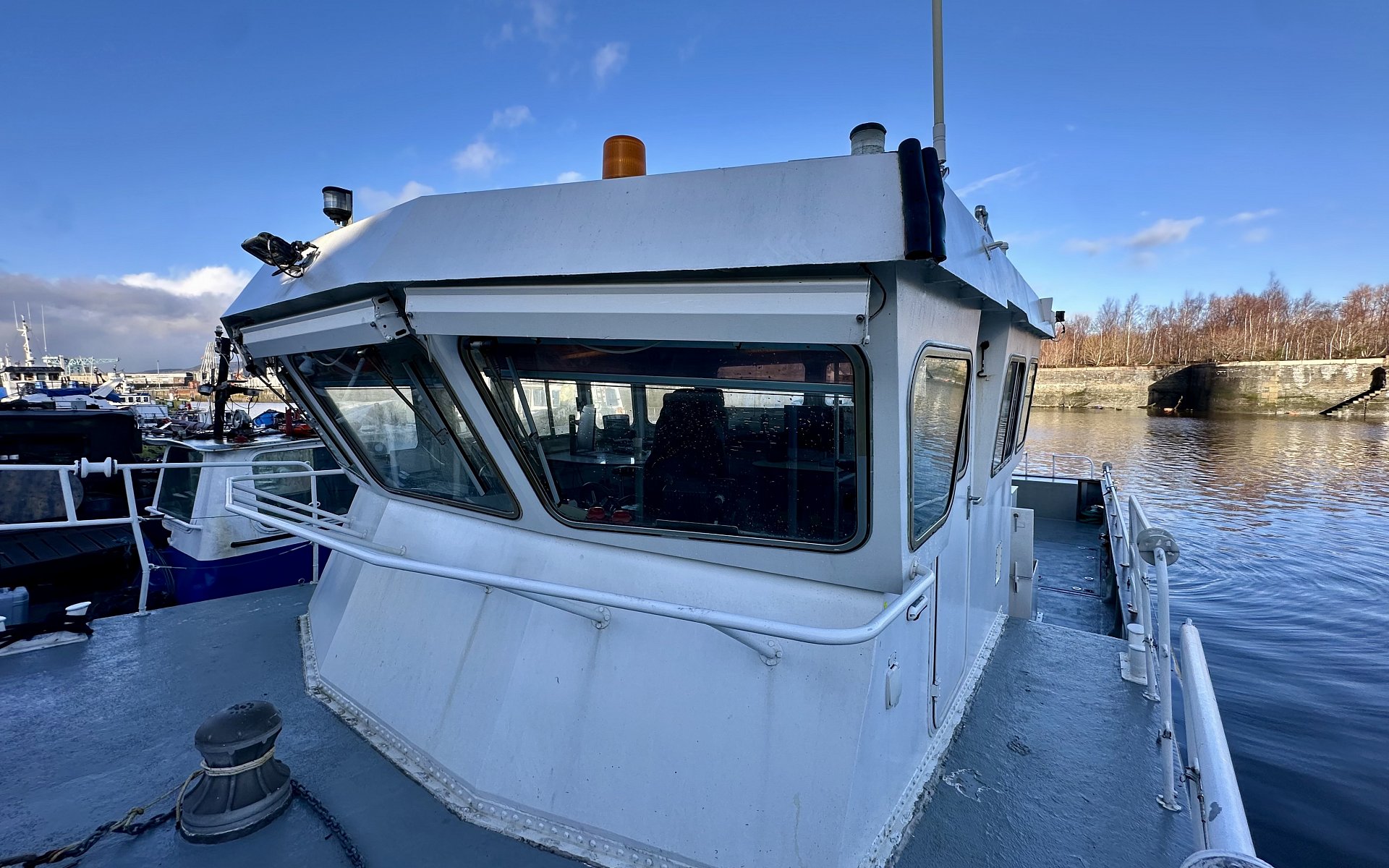

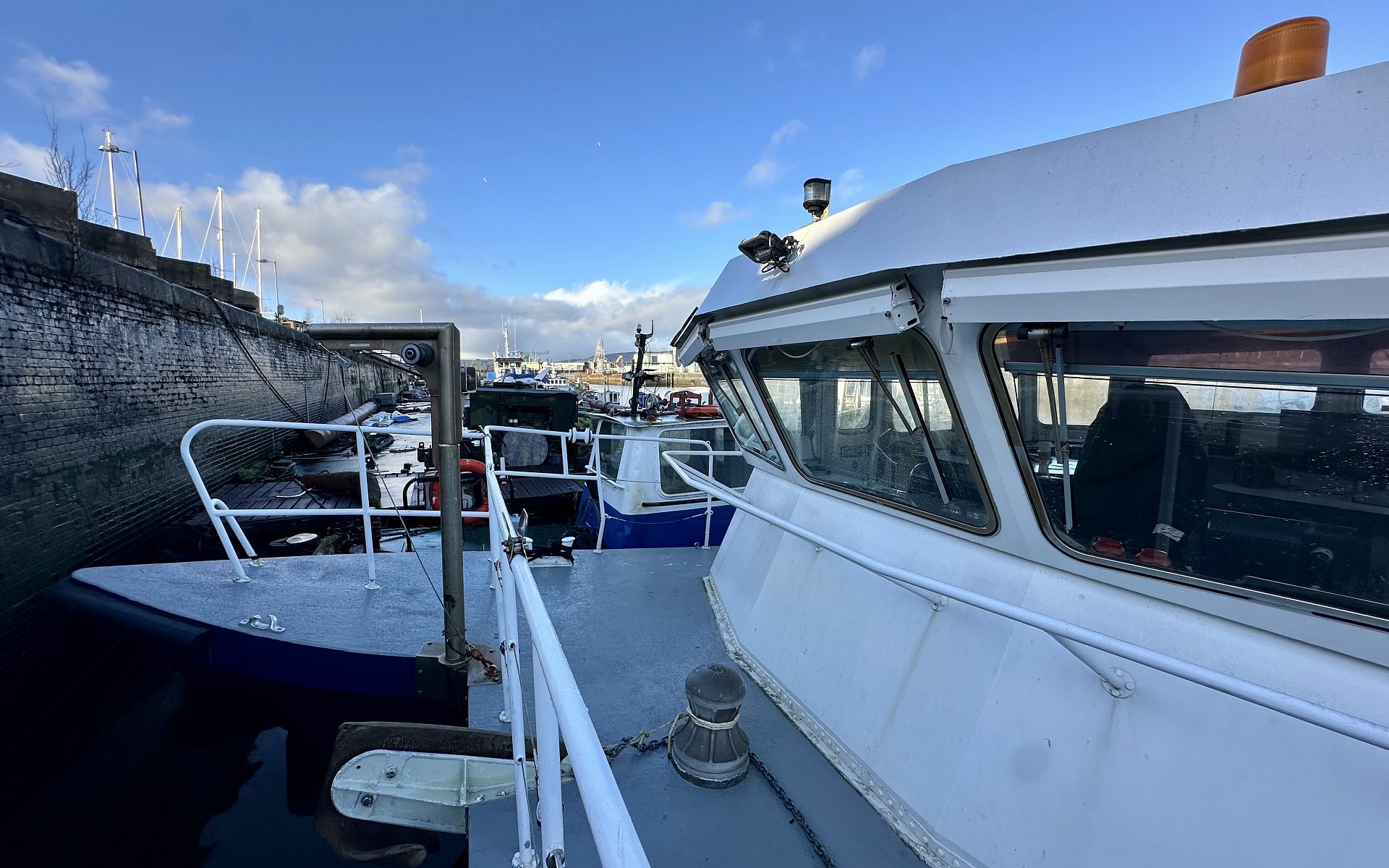

The WHEEL HOUSE is placed at the most forward position and elevated above the accommodation area for maximum visibility but externally leaving a small walkway ahead of the bridge for access to a manual lifting arm, capstan winch & anchoring equipment, etc... Access doors to the bridge (P&S) hinge outboard. The wheelhouse has a central helm console with radiated instrumentation within the full width console area and some instrumentation above. To starboard is a survey desk for PC and monitoring equipment (not included) with pedestal seat and storage with a companionway aft on the port side.
A companionway (P) leads down into a MESS ROOM / GALLEY area and this area extends to the after- deck area on the same level with a central exit door through the rear bulkhead. A HEADS COMPARTMENT is accessed externally on the starboard side via the rear access door.

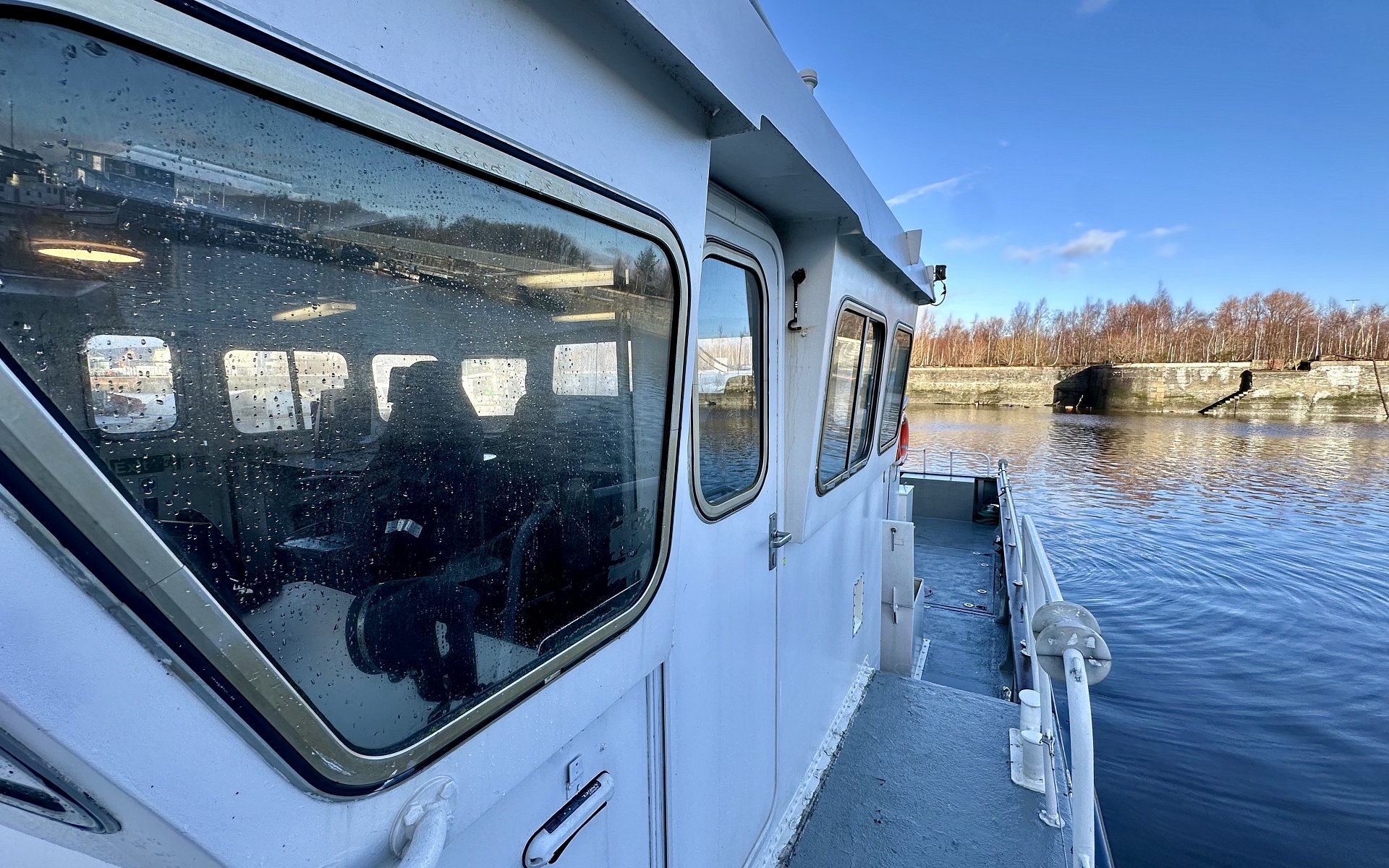

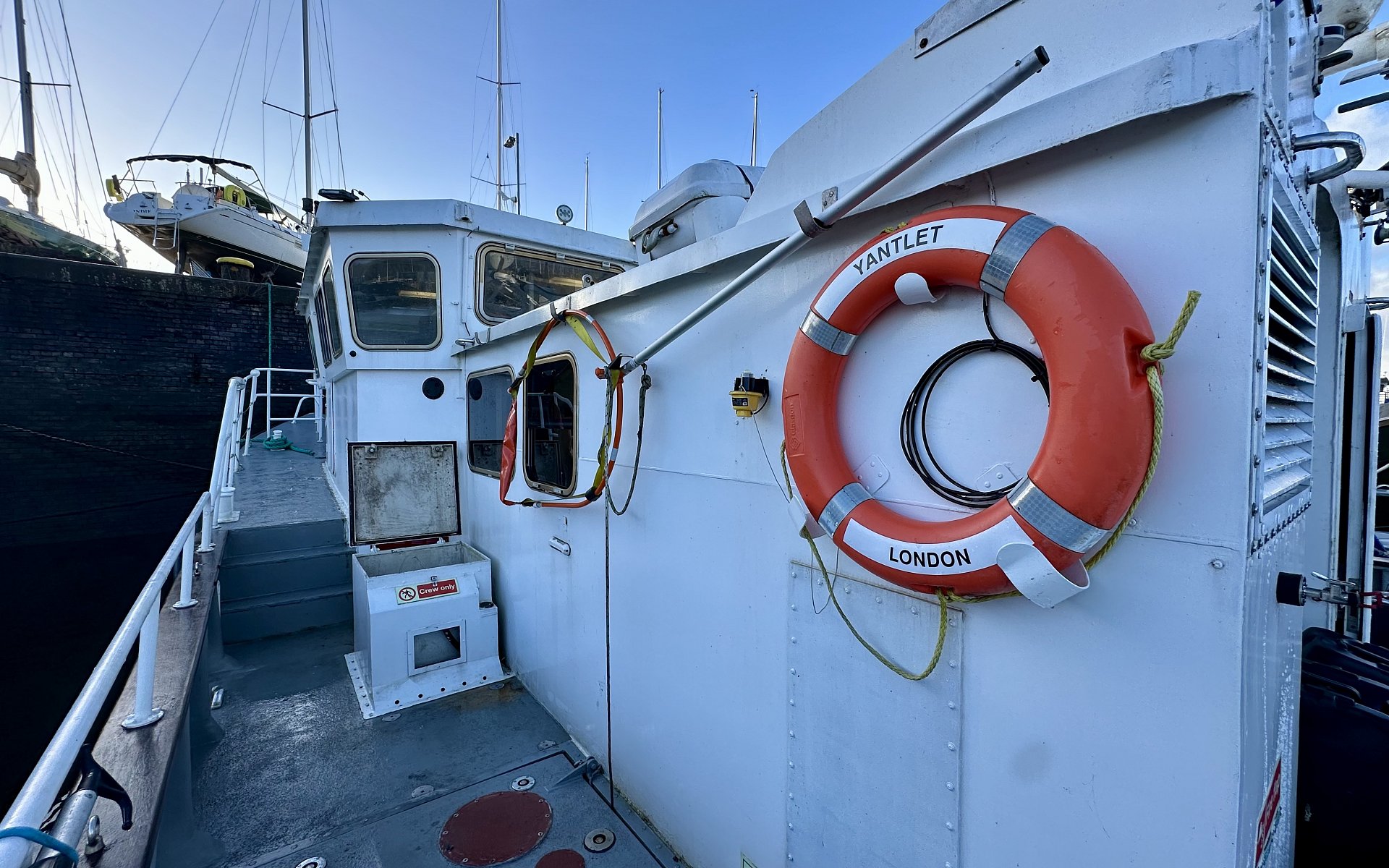

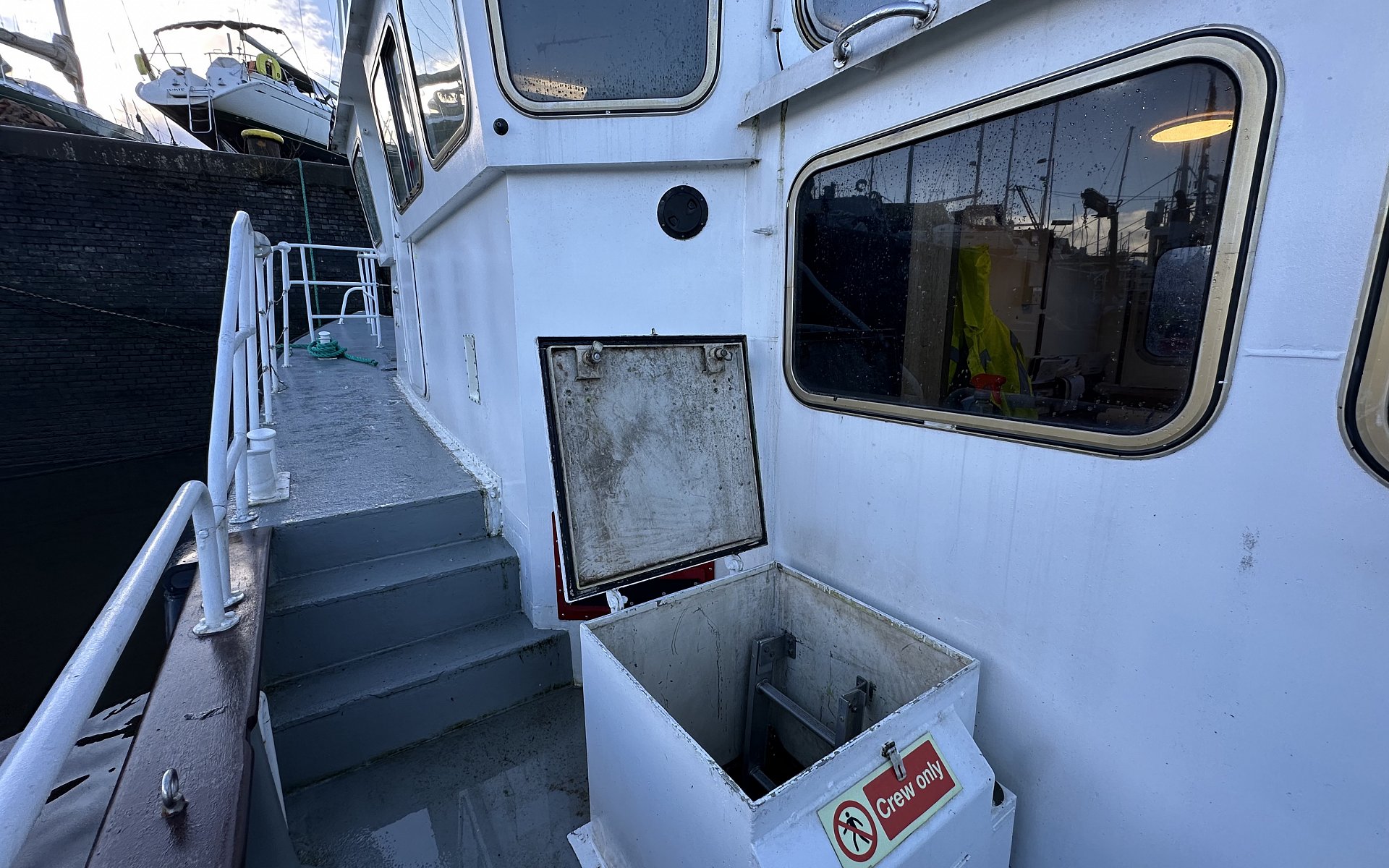

Externally, the vessel has walk-around accommodation with engines accessed through deck hatches (P&S) of the superstructure. A small ‘A’ frame is available at the transom (currently demounted) with a deck mounted electric capstan adjacent reportedly used for light lifts, sampling, etc. (max 1 tonne). A further capstan winch and lifting arm are located forward.
The wheelhouse mounted mast houses the radar scanner, working lights and antenna, etc..
The hull has been re-fendered with heavy section 'D' section with interstraking along both sides and the jets are protected by platforms serving as boarding areas when moored stern to.
PERFORMANCE: Max. 20-22 knots dependent on loading and15-16 knots operational
ENGINE HOURS: (S) 3818hrs (P) 6113hrs prior to rebuild 2021
FUEL: 1500 litres in two tanks
WATER: TBC
BLACK WATER: TBC (new 2023)
Navigation Equipment
Furuno Radar (new 2023)
Furuno Sounder
GPS Plotter
Simrad Auto Pilot
Saab AIS
Sailor Compact VHF
Standard Horizon Hailer System
Sestral Major Magnetic Compass
Sundry other navigational equipment .....
Electrical Equipment
24 volt system
240v Shore Power connection
2 x Fischer Panda 10 KvA variable power synchronized generators (2023) with invertors
Onboard Ring Main with multiple outlets
Safety Equipment
No LSA equipment is supplied
Deck Equipment
2 x CJR 1 tonne Capstan Winches (fwd & aft)
Stern Lifting Gantry

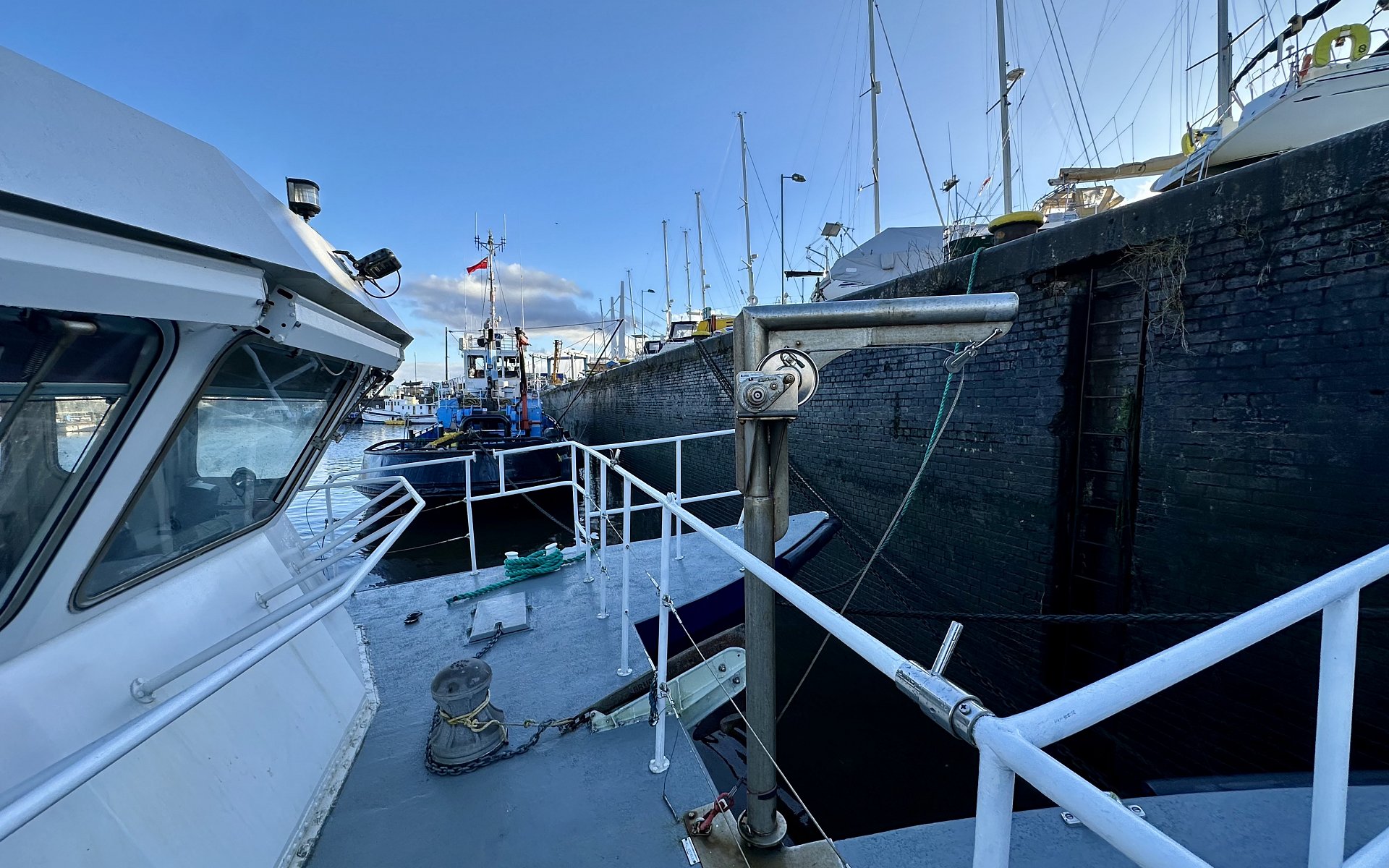

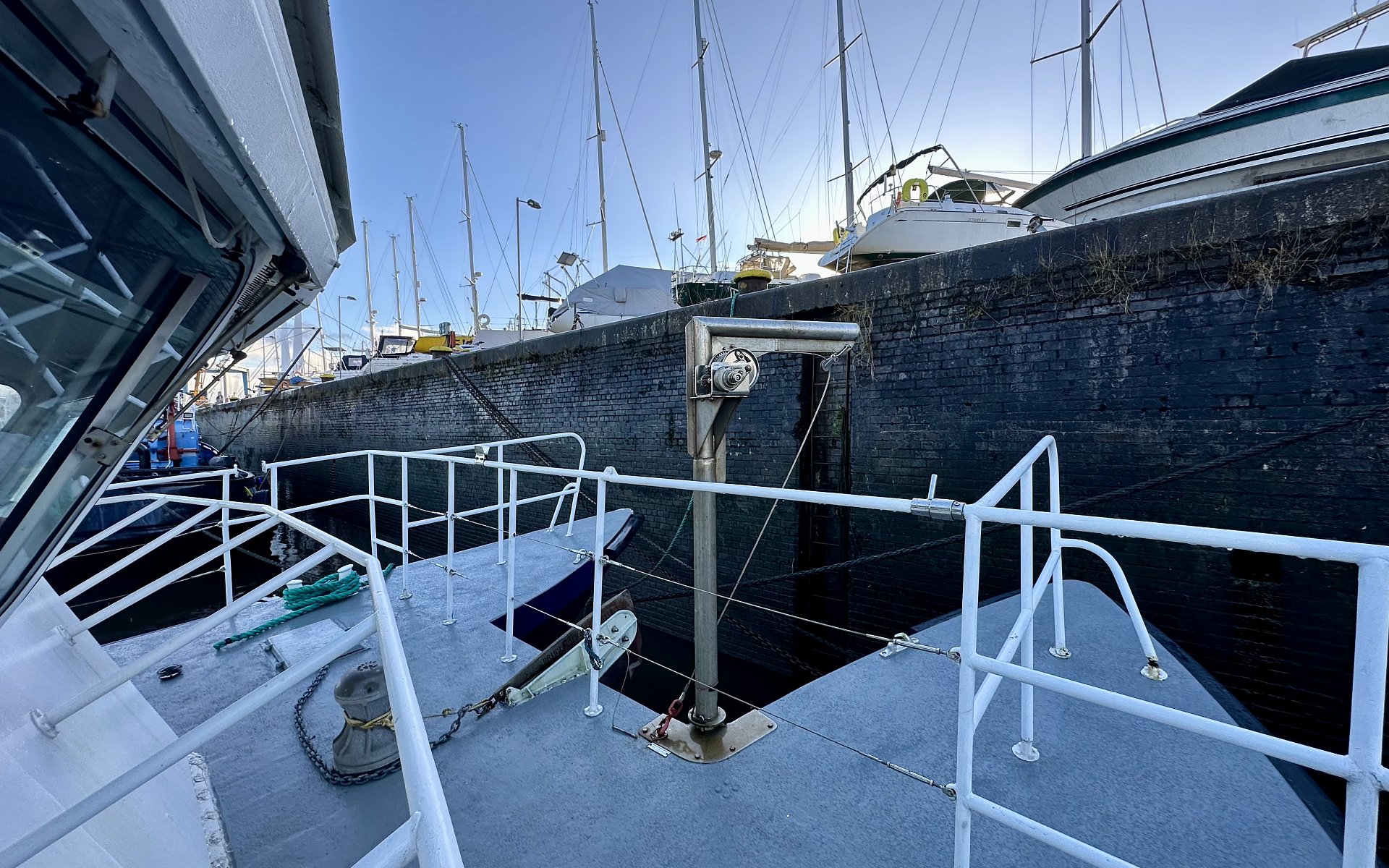

Lifting Arm (forward)
Heavy Section 'D' Fender (new 2023)
