2004 Oyster Yachts 56

Specifications

Equipment & Extras

Model

56

Berths

8

Cabins

3

Engine

Perkins Sabre Diesel

Beam (m)

4.95

Designer

Rob Humphreys

WC/Heads

2

Draft (m)

2.52

Engine HP

115

Engine Hours

5499

Manufacturer

Oyster Yachts

Hull Material

GRP

Displacement (kg)

26499

Fuel Capacity (l)

1050

Water Capacity (l)

950

• GRP hull
• Single-skin hull construction
• Keel-stepped mast
• White hull with cove line and double boot top lines
• Coppercoat

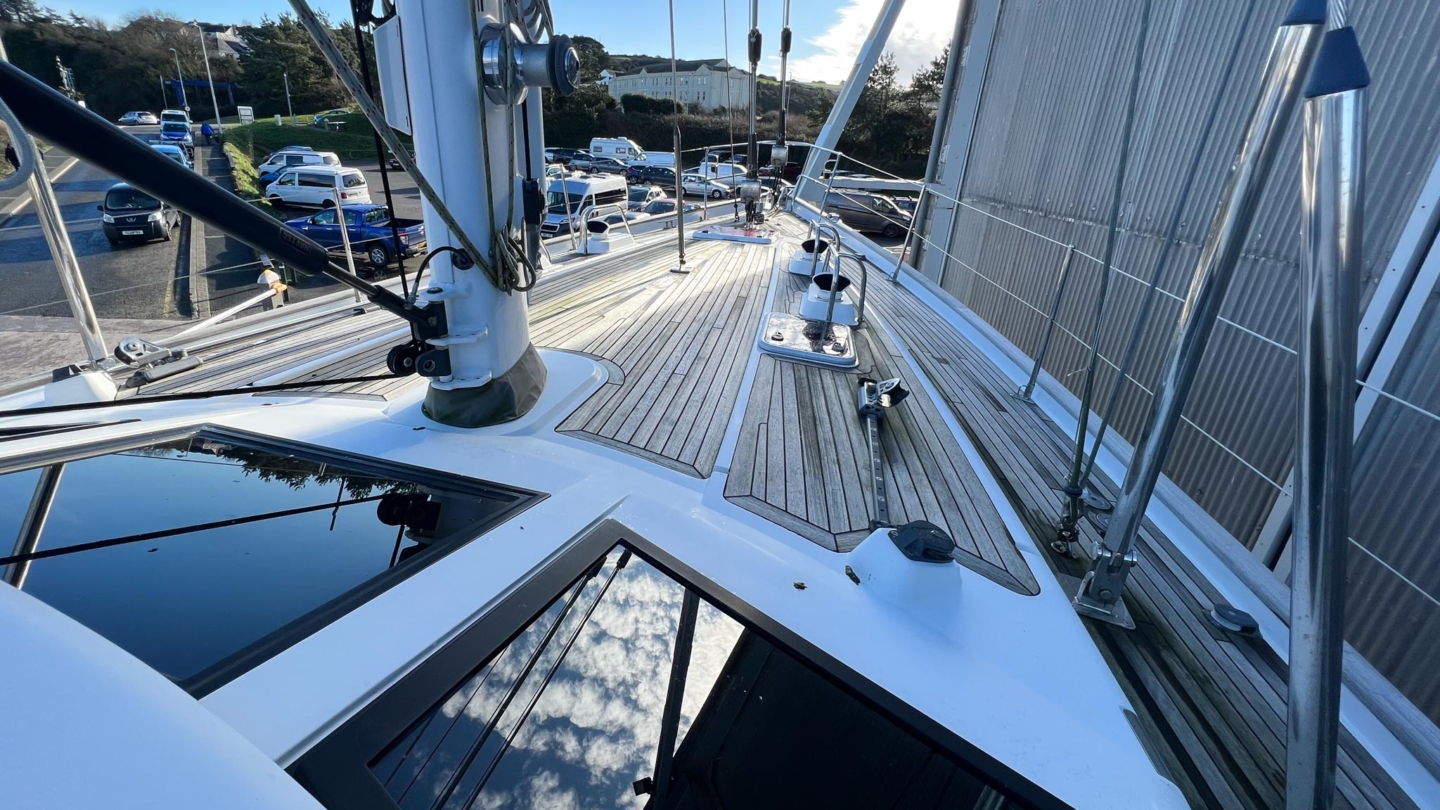

• Teak laid side decks, forward and aft coachroof, cockpit seats, sole and helmsman’s seat
• Teak decking replaced on ring deck, foredeck & aft deck in 2018
• Raised bulwark finished with teak capping rail
• High-performance bulb external lead keel

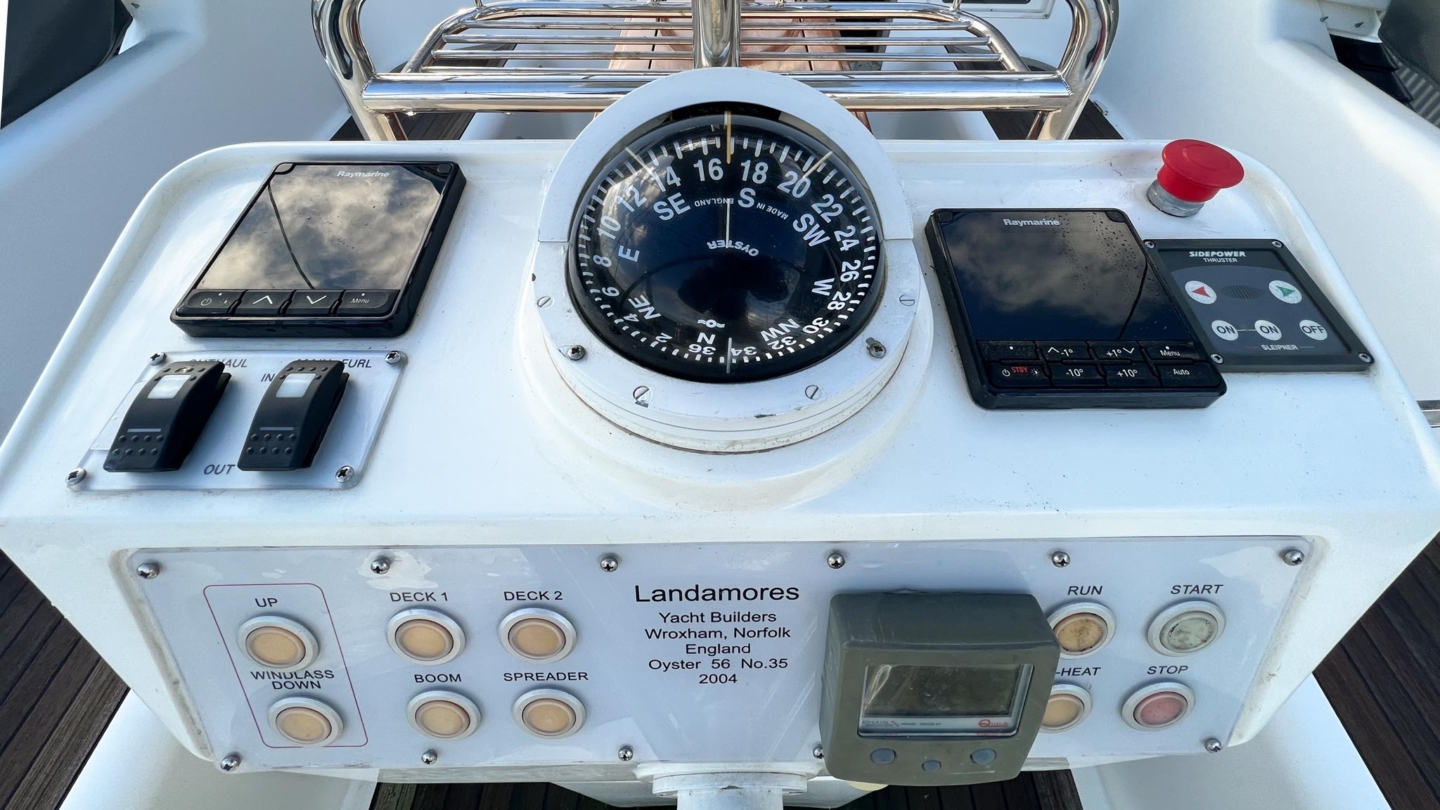

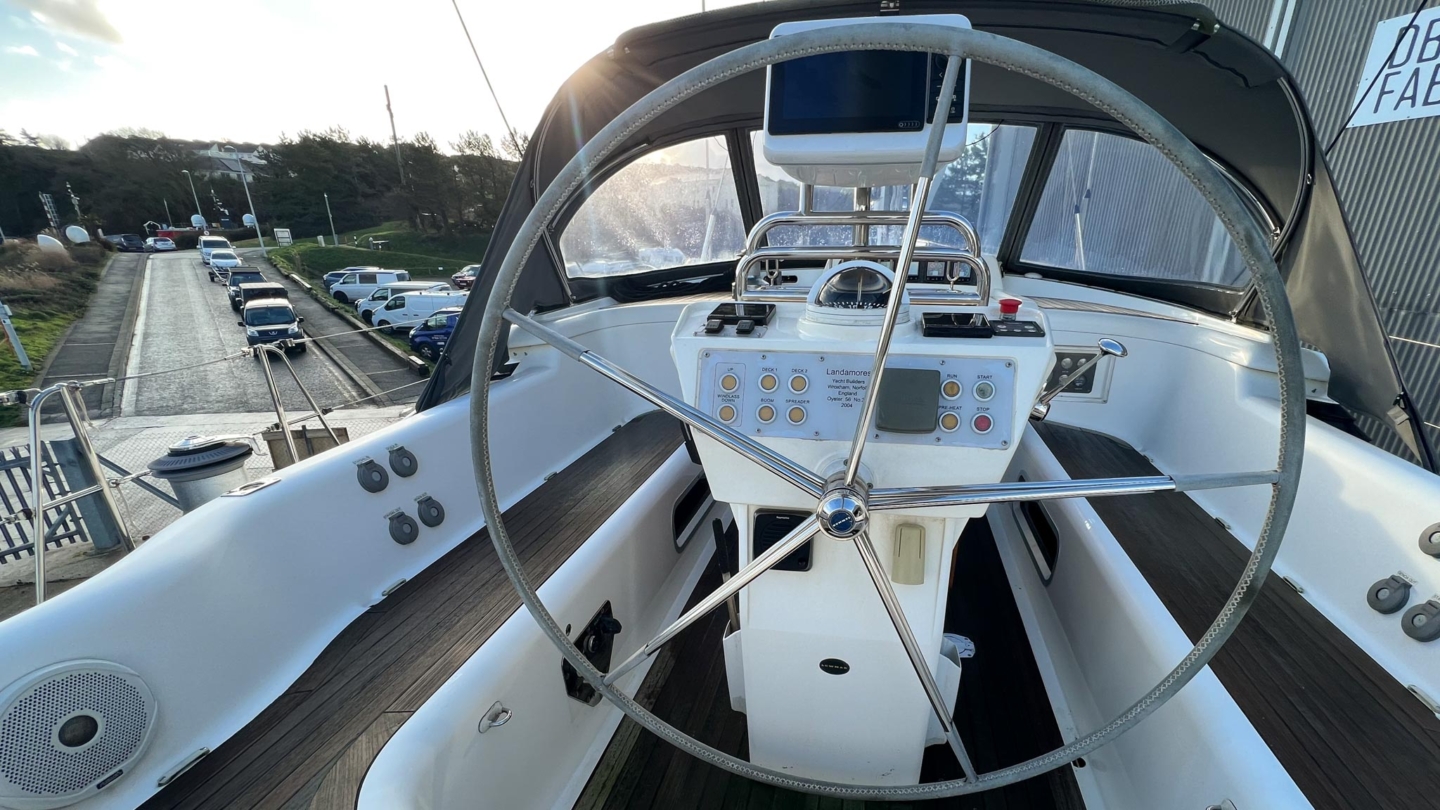

• Whitlock Athena steering pedestal & stainless-steel Maxi wheel
• Fully protected skeg-hung rudder
• Perkins/Sabre M115T 4-cylinder diesel engine
• 115HP
• Approximately 5,500 engine hours
• Shaft drive
• Aquadrive coupling
• Max Prop 3-bladed 600mm (24”) diameter feathering propeller
• Ambassador AM15 rope cutter on shaft
• Engine and generator Racor filters parallel plumbed
• Racor 500FG fuel filter and water separator
• Twin alternators: 1x 55A/12V for engine start, 1x Mastervolt 150A/24V for domestic
• Electric Sleipner 10.7hp tunnel bow thruster with GRP eyebrow
• Manifold system for seawater inlets
• 45kg stainless-steel Ultra anchor with 100m of 12mm stainless-steel chain and chain counter
• 20kg Bruce kedge anchor with 100m of 18mm Octoplait warp and 10m of 12mm chain

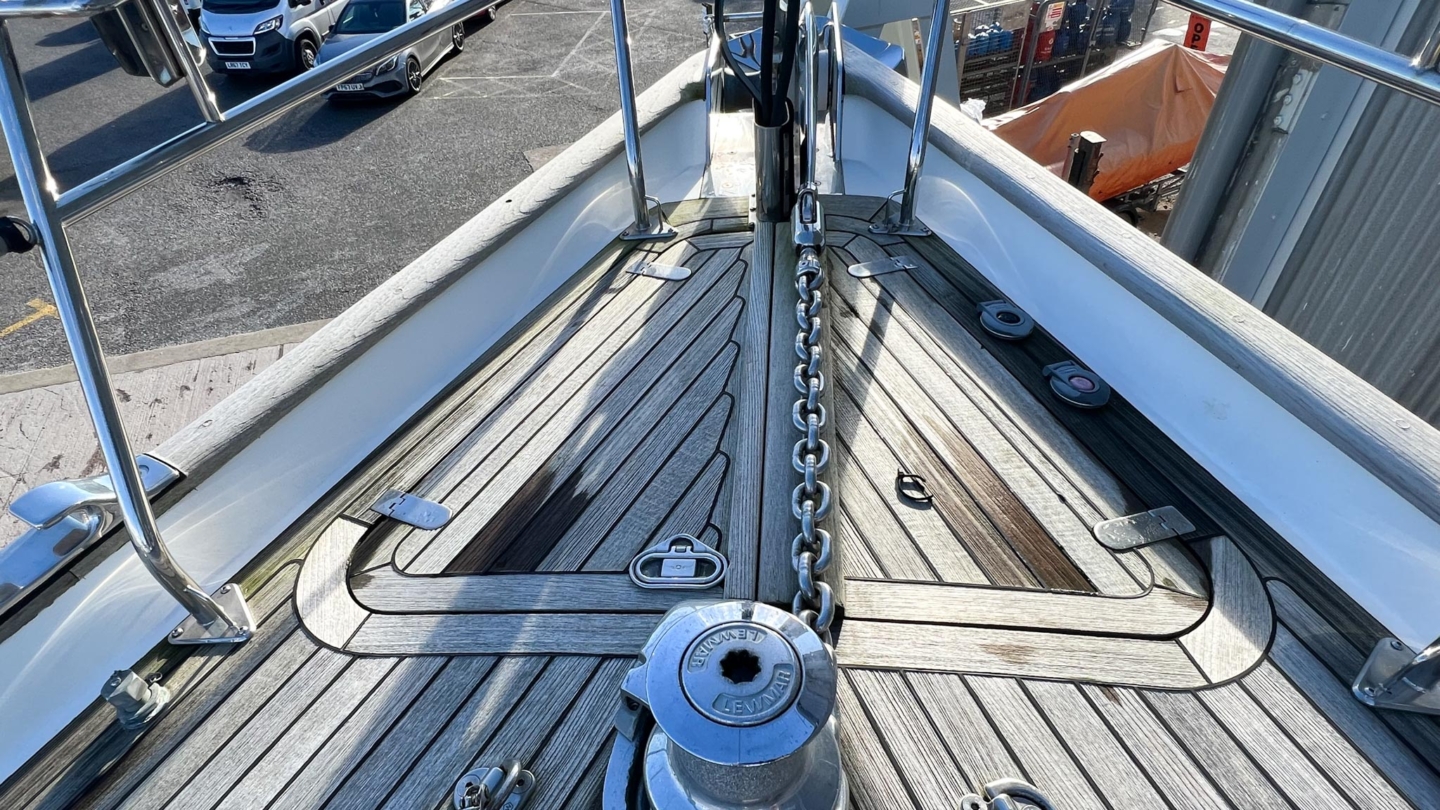

• Lewmar Ocean 3 vertical (24V) capstan gypsy/drum type hydraulic anchor windlass
• Remote windlass control switch at pedestal
• 2x Lewmar 66 CEST two speed, electric primary winches
• 2x lewmar 54 secondary winches
• 1x Lewmar 48 CEST electric mainsheet winch

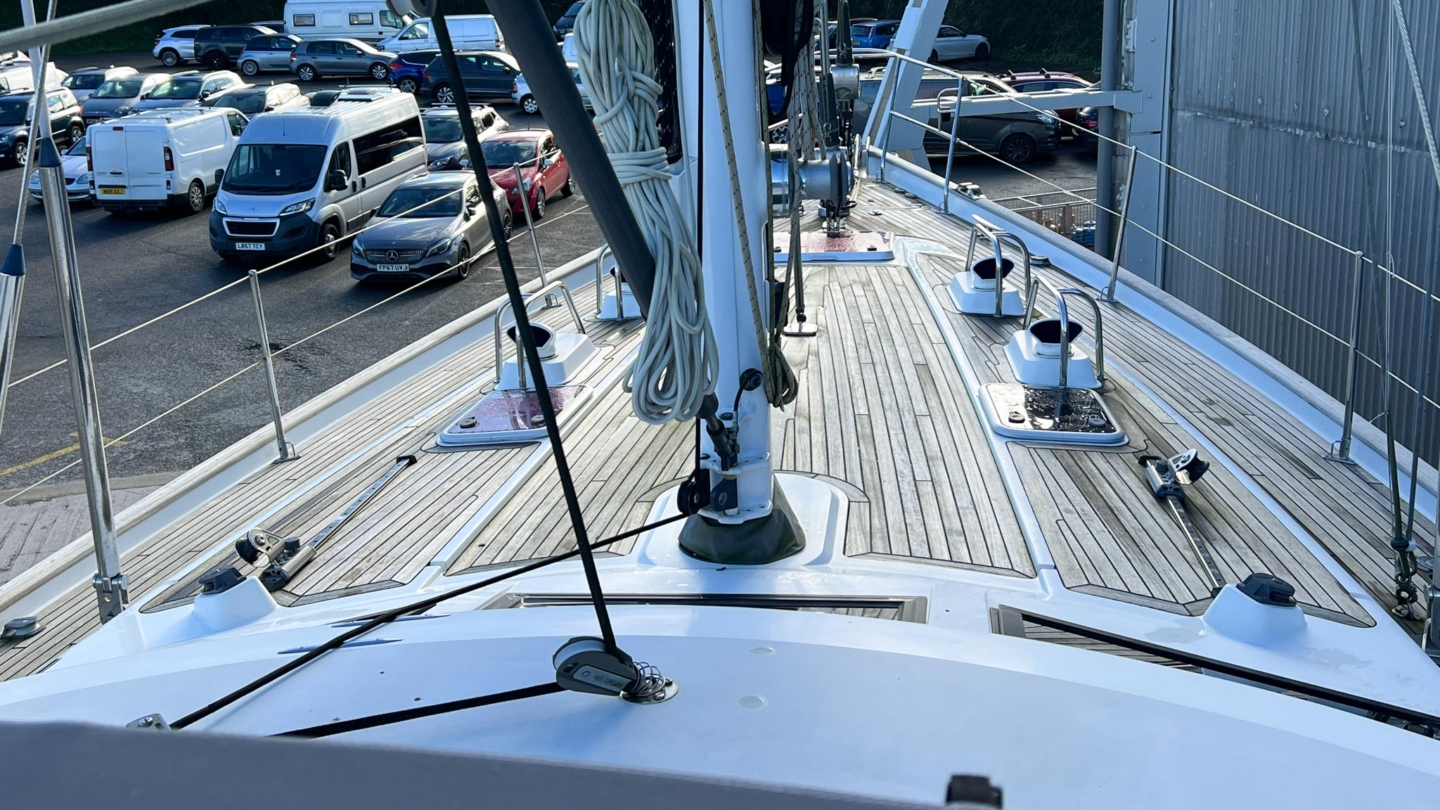

• 2x Lewmar 48 CST two speed, main and genoa halyard winches on mast
• 2x Lewmar 16 CST two speed, mainsheet traveller winches
• Solid teak-topped cockpit table permanently installed in a robust stainless-steel frame
• Hinged lid access to insulated GRP Frigomatic 24V (keel-cooled) cool box
• Stainless-steel bathing/board ladder with teak treads
• Lightweight passerelle
• Stern quarter pushpit seats in teak and stainless-steel
• Teak outboard bracket on starboard side pushpit
• Cooney electric davits – 300kg maximum total load
• Stern post for navigation/communications antennae
• AB 3.4m RIB with Raymarine GPS and depth sounder
• Yamaha 4-stroke 25hp lightweight outboard motor
• Bauer Junior dive compressor with four cylinders in lazarette
• Large custom fold-down companionway sprayhood with stainless-steel frame
• Padded cockpit table cover with access flap to coolbox
• Covers for pedestal and steering wheel
• Cockpit seat cushions in closed cell foam with acrylic covers
• Awning to cover boat from mast to stern
• Six-person cannister life raft
• Webbing jackstays
• Emergency tiller
• Domestic batteries: 8 x Lifeline AGM deep-cycle 6V (20 hour), giving a total of 460Ah at 24V
• Engine start: 88Ah Delta AGM battery
• Generator start: 12V gel cell battery
• Cummins Onan MDKBN 11kW diesel generator with remote digital control panel
• Approximately 350 generator hours
• Mastervolt 220V MASS 24V/100A battery charger
• Mastervolt BTM1 battery monitor
• Mastervolt 3-stage regulator
• Victron Orion DC-DC filtered power supply
• 2x (220V) Mastervolt 24V/1500W inverters
• 220V AC ring main with double Clipsal outlet sockets
• 30A dockside shore power cable, 3-core double insulated PVC, 18m (60’) in length
• Additional secondary 30A shore power cable and socket for air conditioning loads
• LED overhead downlights
• 2x overhead lights with red lenses for night lights
• Reading lights for each berth
• LED lights in each head compartment and above galley work surfaces
• Red LED courtesy footlights at deck saloon, chart table and galley steps
• Exterior dome lights in engine room
• Boom light over cockpit table
• Pair of lower spreader downlights with remote control
• LED navigation lights
• Steaming/deck floodlight
• Tri-white anchor/navigation light at masthead
• Pressurised hot and cold freshwater system
• Secondary hot/cold water system and manual pump back up
• Hot water heated by the engine / immersion heater / shore power
• 220V Seafresh 206A watermaker (95 litres per hour)
• Hot and cold freshwater deck shower in transom locker
• Freshwater anchor/deck wash in bow
• FUEL: one GRP tank under port side deck saloon floor = 1,050 litres approx.
• WATER: one GRP tank under starboard side deck saloon floor = 950 litres approx.
• Tank Tender System linked to all tanks for monitoring fuel and water tank levels
• HOLDING TANKS: 2x polypropylene holding tanks with gravity discharge or deck pump out
• GREY WATER: two sump tanks, one forward and one aft, with dedicated electric Whale ‘Gulper’ pump
• Gas locker within the aft deck with stowage for two 6kg bottled gas cylinders
• 220V Cruisair reverse cycle air conditioning system, comprising of three units
• 1x 16,000 BTU unit to saloon
• 1x 16,000 BTU unit to forward double cabin, with duct to port forward twin cabin
• 1x 16,000 BTU unit to aft cabin, with duct to starboard aft workshop
• Jabsco Maxi 3000 Puppy electric bilge pump with Par Hydro air switch
• Henderson MkV manual bilge pump operated from within the cockpit
• Each bilge pump is fitted with a Whale type filtered strum box
• Submersible 24V Jabsco 3550 bilge pump in bilge sump, with float switch
• Flush-mounted SIRS Major steering compass
• 4x Raymarine i50 multifunction displays
• Pedestal: 1x i70 multifunction display
• Chart Table: 1x i70 multifunction display
• Owners Stateroom: 1x i50 multifunction colour display
• Raymarine Axiom 12, 12” multifunctional display
• Raymarine Axiom 9, 9” multifunctional display
• Raymarine 120 GPS
• Dragonfly-5 Pro – for dinghy
• AIS Raymarine AIS system
• Raymarine P70 colour automatic pilot with Type 400G course computer, gyro rated compass
• Autopilot control heads at pedestal and chart table
• Additional RMK-10 remote keypad for remote control
• WINDEX Short arm wind transducer
• NAVTEX Furuno NX-300 NAVTEX receiver at chart table, with antenna
• Raymarine MIC260 EU VHF, with masthead antenna
• Additional Raymarine 260 VHF EU
• Raymarine hailer / horn connected to mast
• SSB RADIO ICOM IC-M802 SSB radio
• Backstay insulators
• FB250 Inmarsat FleetBroadband satellite phone
• Hardwire set-up for Iridium GO! marine satellite communication system
• Nexcom Nise 3600E mini PC
• AV Neovo SX-17Plus, black screen monitor at chart table
• Samsung, computer remote control, with on/off button
• Digital Yacht CF100 PC with monitor at chart table, and Canon printer/scanner
• Wi-Fi (replaced 2018) and added Wi-Fi booster
• MailASail Redbox communication system
• Yachtspot 3G/4G system providing shore side Wi-Fi hot spot and 3G/4G data network
• Shakespeare 5239/LMR400, speaker mounted 4G antenna
• Glomex PRA471-PRM280/LMR240, spreader mounted Wi-Fi antenna
• Netgear GS116, 16 port gigabit network switch
• Logitech unifying, keyboard and mouse
• Startech USB 3.0 hub, with 7x ports and DC powered
• Actisense NGT-1-USB, NMEA 2000 USB data converter (interfaces instruments to PC)
• Synology DS416SLIM NAS drive with RAID for storage of movies, music and PC backup
• 4 Western Digital, 1 tb Sata with RAID backup
• SeaMe active radar reflector
• Cutter rig
• Formula Stoway white painted mast and boom with triple spreader rig
• Lewmar Commander Hydraulic System to power mainsail furling and outhaul, foresail and staysail
• Mast gooseneck upgraded to hydraulic drive
• Hydraulic outhaul for Formula Stoway mast with bypass valve
• Boom preventer lines, each side of boom
• Navtec hydraulic backstay with remote panel in cockpit
• Navtec hydraulic vang
• 2x folding mast steps below mast top
• No-Strike lightning protection on dissipater at masthead

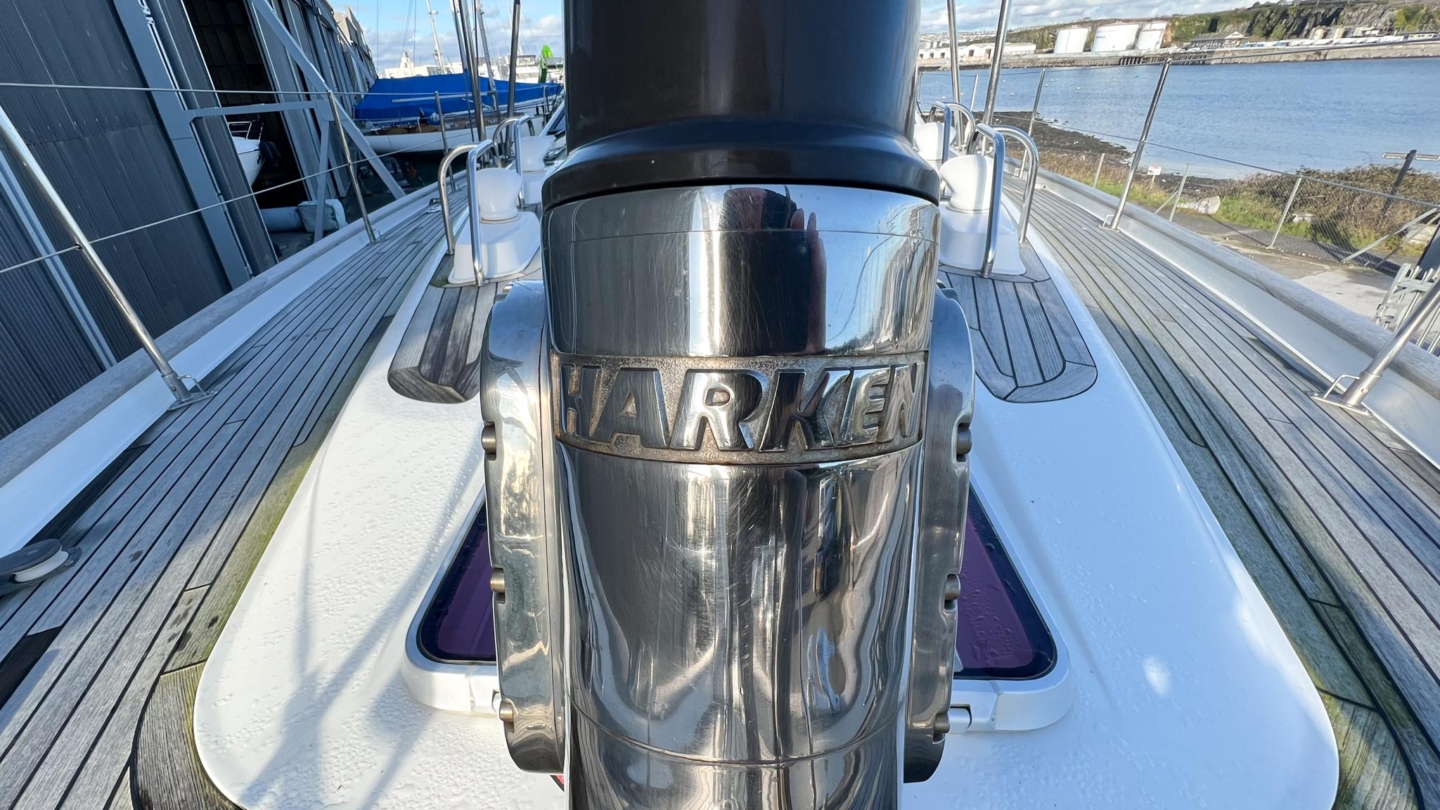

• Harken hydraulic headstay furler
• Harken hydraulic staysail furler
• Hood Yacht Spars spinnaker gear with single carbon spinnaker pole stowed vertically on mast
• Standing rigging replaced in 2018, predominantly in Dyform wire, with a Nitronic -50 rod backstay and 1/19 wire, and running backstay legs
• Dyneema running backstays
• Bottle screws replaced with stainless-steel, Sta-lok, Supajust turn-buckles with bronze inserts
• Nitronic rod backstay fitted with replacement backstay insulators suitable for use with an SSB
• Sails by Evolution Sails Hydra Net radial fabric, coated with Dimension-Polyant
• Furling mainsail
• Yankee
• Staysail
• MPS cruising chute
• Storm sail
• Interior joinery finished in Millennium style crown-cut Maple
• Chequerboard style teak veneered floor panels with a light cream perimeter line inlay
• All berths have Dacron lee screens fitted with lanyards to through-bolted eyes
• Double berths have split mattresses allowing for a central lee cloth
• Acrylic horizontal galley worktops in ‘Goldmine’ Avonite
• Headlining in off-white vinyl, which is also used to cover the deck saloon sides
• Hull ports are set into GRP liner mouldings
• Upholstery in Alcantara fabric with Millennium style stitching
• ‘Sea Sand’ Alcantara mattress covers fitted with a zipped side opening and rot-resistant vinyl on underside
• Blinds to windows in all cabins
• Oceanair Skyscreen blinds to all deck hatches
• Flyscreens to all opening hull and coachroof ports
• White Hella turbo fans throughout with 12V dropper
• Custom vertical drop-down washboard system to main companionway
• Alloy-framed, custom-made deck saloon windows in toughened smoked glass
• Lewmar alloy-framed deck hatches
• Gebo alloy-framed Econoline opening ports in aft coachroof sides with flyscreens
• Pair of Gebo long portlights into fourth workshop cabin and galley from cockpit
• Gebo alloy-framed opening hull ports with flyscreens
• Two head compartments each fitted out with: white washbasin set into a ‘Harvest’ Avonite work surface
• Damixa quality mixer taps and shower controls
• Matching towel rail, toothbrush holders, soap dish and toilet roll holder
• PAR Quiet Flush electric toilets with large porcelain bowls (fresh water or saltwater flush)
• FORWARD DOUBLE CABIN: Spacious double guest cabin in the bow with a centreline double berth and storage drawers beneath
• Chart stowage drawer under berth drawers
• Seat to starboard, upholstered in ‘Amber Glow’ Alcantara
• Vanity table, two hanging lockers, plus plentiful stowage space
• Forward watertight bulkhead, built to MCA specification
• Deck access via fore hatch
• PORT FORWARD TWIN CABIN: Wider than standard upper and lower berths
• Stowage lockers beneath lower berth
• Hanging locker and bedside unit
• Mirror fitted to aft bulkhead
• SHARED HEAD/SHOWER AND DAY HEAD: Located forward to starboard and accessed from the passageway
• Incorporating a toilet, washbasin, and separate shower stall with sliding door
• Mirror above washbasin
• Lockers for wash bag and towel stowage
• SALOON: Extremely light and airy with seven windows
• Large curved settee to port, and a shorter settee to starboard, with stowage beneath
• Seating upholstery in ‘Camel’ Alcantara
• Slide-out Samsung SMART TV to starboard, lockers and central shelves to hull ports with bookcase rails
• Extendable oak burr saloon table, with black inlay line and corner handholds
• Mounted on a very substantial pedestal incorporating wine bottle stowage
• Folding leaf that opens out to form a large dining table
• 2x folding alloy framed director’s chairs, upholstered in ‘Camel’ Alcantara with special stowage
• Padded saloon table cover in foam-backed off-white headlining vinyl
• Drinks fridge fitted in starboard locker, plus glass and bottle stowage
• NAVIGATION AREA: Forward facing chart table with seat in ‘Brown’ Alcantara
• Flush-mounted electronics and navigational equipment
• AC / DC electrical panels located above
• GALLEY: Panel access to engine compartment
• Avonite galley work surfaces and upstands
• Stowage for crockery, cutlery, utensils, and glasses
• Large locker containing ice-maker with remaining area fitted out with shelves
• Twin stainless-steel sinks
• Manual freshwater pump
• Water purifying charcoal filter system
• Gimballed stainless-steel Force 10 cooker with four-burners, oven, and grill
• Flame failure gas cut-off device
• Electric gas solenoid valve
• Panasonic stainless-steel microwave oven
• Front-opening Frigomatc refrigerator
• Frigomatic top-opening freezer box, configured to run as a refrigerator or freezer
• Stainless-steel Fisher and Paykel dishwasher
• U-Line 220V ice maker
• ENGINE ROOM: Accessed via the starboard aft workshop, or via removable panels beneath the galley sinks to port
• 24V lighting, and a 24V extractor fan
• Automatic fire extinguisher
• WORKSHOP/UTILITY ROOM: Aft of the saloon/navigation area to starboard
• Workbench with removable vice
• Stowage unit consisting of two tool drawers and one locker
• Locker on aft bulkhead for Racors and watermaker
• Built-in wet locker to starboard with two removable stainless-steel bars
• Eumenia Sparmeister washer / dryer
• OWNER’ S STATEROOM: Double berth offset to port with storage drawers beneath
• High-quality proprietary battening system beneath mattresses
• Headboard and seating upholstery in ‘Amber Glow’ Alcantara
• Bookcase rails starboard side of berth
• Settee outboard of the berth to starboard
• Dressing table and upholstered seat
• Flip-down flat screen Samsung SMART TV from forward headlining’s
• Large hanging locker, safe with digital combination lock, plus ample drawer and locker space
• ENSUITE HEAD/SHOWER: Toilet, washbasin, and separate shower stall with sliding door
• Mirror and lockers
• ENTERTAINMENT: Saloon Samsung flat screen SMART TV on slide-out stainless steel H-frame, linked to Wi-Fi and media drive
• Linn Classic surround sound and music system with CDRB20 interface stereo
• Fader control to cockpit loudspeakers
• Anthony Gallo surround sound speakers
• Fusion SG-S10W subwoofer 450W, installed under the saloon seating on the port side
• Synology media hard drive
• Navigation area Behind TV Fusion MS-AV755 with FM tuner, built in Bluetooth and CD/DVD, aux input connected to TV audio out
• Interfaced with the Raymarine Axiom 9 fitted at the pedestal
• Cockpit Fusion MS-AM806, 24v DC, 6 channel amplifier to power the existing saloon and cockpit speakers
• Pair of waterproof loudspeakers mounted within the coamings either side of the pedestal
• Owners Stateroom Samsung flat screen SMART TV mounted on flip-down panel
• DVD entertainment system controlled via infrared eye

Description
